Load Capacity 60kg/m
Flat-bottomed Goods
Bagged Goods

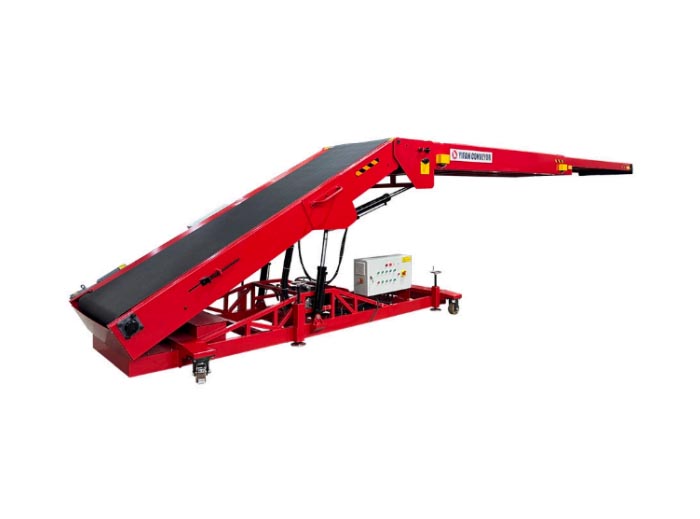

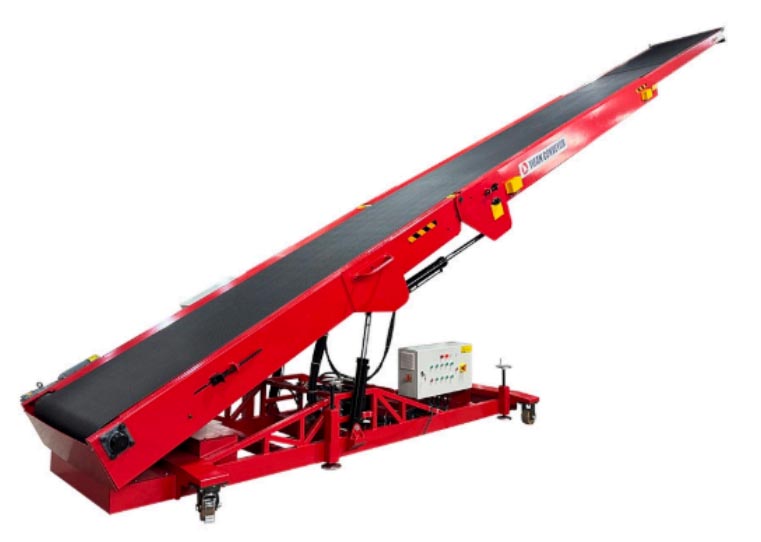

Yifan telescopic belt conveyor with 3 sections, loading and unloading safely and efficiently, its advantage is that it is in line with ergonomic operating conditions. Through joystick or buttons, the telescopic belt conveyor can reach any position that was needed by the operator. The goods can be efficiently and easily be loaded and unloaded through arbitrary stretching move.
The extending or retracting movement was feedback for the operator through electric fast response, and the users can choose our products model according to the length of the truck they also can contact our sales team, and get a reasonable proposal from us in addition, on our website, we can offer guide of standard solution. If you have any question, please tell us your requirement, we will proposal safe and economic solutions.
| Fixed Length | 6m |
| Extension Length | 12m |
| Total Length | 18m |
| Belt Spec | 800mm width PVK belt, alligator clip jointing |
| Belt Top Height | 1200-2200mm |
| Belt Direction | Forward & reverse |
| Max. Load Capacity | 60kg/m |
| Belt Driven Motor | 3kw, SEW |
| Telescopic Motor | 0.75kw, SEW |
| Hydraulic Power Pack | 2.2kw |
| Machine Total Power | 5.95kw |
| Electric Control System | Schneider PLC intelligent controller |
| Main Electric Components | Schneider,including abnormal fault automatic detection alarm device |
| Telescopic Chain | Donghua, Hangzhou |
| Power Cord Length | 5-10m |
| Standard Color | BLUE/RED |
| Voltage | 380V, three phase, 50Hz |
